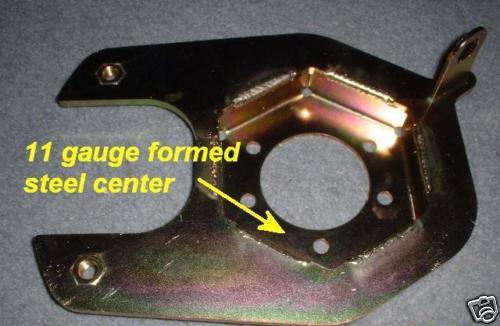

This pair of precision laser-cut, cold-rolled steel brackets are used to convert your drum-brake equipped Mopar rear drum brakes to disc. This setup uses GM 1979-85 Cadillac Eldorado calipers and pads with the integral parking brake. These, along with 1982-87 Lincoln rear rotors (11-1/4") are as near as your closest NAPA or other parts house. These rotors are a composite rotor, i.e. stamped steel inner with cast iron vented brake surface. This allows the use of your OEM wheel studs. Our brackets feature 11 gauge formed steel centers so bearing preload remains the same as drum, no need for using "Green Bearings" or axle shimming. The brackets also have integral flex hose retainers - no flimsy zip ties or hose clamps to the axle housing.
These brackets will work with 8-3/4", Dana 60 and 8-1/4" rear axles. Will not work with "A" bodies unless springs are moved inboard 3/4" or more and have 5 on 4-1/2" bolt pattern. This combination requires 15" rims and will not fit the earlier two-piece axles.
Listing is for 2 brackets, hose clips and banjo bolts only.
